Configuring EMS-ESP

First time setup~

The default 'factory' configuration will start an WiFi Access Point called ems-esp. Connect to this using the WPA password ems-esp-neo. When prompted with a login screen (captive portal) sign-in with the username admin and password admin. These can be modified later. If you have an Ethernet board then you can connect directly to it's IP address or via http://ems-esp or http://ems-esp.local.

Now you're ready to further configure the settings. If not connected to your WiFi network, do this first from the Settings->Network page. You can also do this via the the Console when connected to a Serial/USB port and using the commands set wifi ssid and set wifi password.

If you're seeing warnings that it failed to connect to the EMS bus, or there are Tx or Rx errors then follow the troubleshooting guide.

If Rx incomplete telegrams are reported in the log, don't panic. Some telegrams can be missed and this is usually caused by noise interference on the line.

This next section describes some of key settings that can be adjusted via the WebUI, found under the Settings section. Most are self-explanatory so only the important ones are described here.

Application Settings~

Services~

  • Bypass Access Token authorization on API calls. For RESTful write commands via HTTP POST the access token is required. This is for security reasons to prevent anyone changing device settings. Setting this flag makes the API open. Not recommended!
  • Enable Telnet Console. This is on by default and allows users to connect to the in-secure Telnet server on port 23.
  • Enable Modbus. This is off by default and allows users to connect to the Modbus TCP server (default port 502). Due to memory constraints this feature is only available on boards with additional PSRAM.
  • Enable Syslog:

    • IP is the IP address of a syslog server for capturing remote logs. Leave blank is not using SysLog.
    • Port if using an alternate port number. The default is 514. And it uses UDP (not TCP).
    • Log Level sets the maximum log level for reported messages. The highest level is DEBUG which will send a lot of log data so use with caution.
    • Mark Interval will send out a special mark message to the SysLog. This is useful for timing events.

Sensors~

  • Enable Analog Sensors. This enables any GPIO to collect signals, whether it's a digital I/O, a pulse counter or ADC measuring mv.
  • Enable 1-Wire Parasite-Power. Select this option when using (Dallas) temperature sensors with parasitic power.

Formatting Options~

  • Language. This sets the language to be used for the EMS Device Entity names, as shown in the WebUI Devices and Dashboard, and also for MQTT Discovery. The default is English. When using Home Assistant, and switching the language you may need to remove the previous EMS-ESP MQTT entries (from HA's Settings->Devices & Services->MQTT) and restart EMS-ESP just to be sure.
  • Boolean Format Dashboard. This is how boolean values are displayed in the WebUI and MQTT payloads.
  • Boolean Format API/MQTT. This is how boolean values are written in the MQTT payloads and API JSON output.
  • Enum Format API/MQTT. This is how list values are presented in the MQTT payloads and API JSON, either by it's value or the index position within the list. Not if using Home Assitant you will not see the values but integer numbers for some entities, e.g. instead of off, hot, cold it will display 0, 1, 2.
  • Convert temperature values to Fahrenheit. For our US friends.
  • Log EMS telegrams in hexadecimal will write the telegrams in raw format as hexadecimal values everywhere.

Hardware Settings~

  • Board Profile. Board Profiles are pre-configured GPIO settings for a set of common ESP32 development boards and EMS Gateway circuits. The following profiles are available:
profile name based on board led dallas rx tx button phy_type eth_power eth_phy_addr eth_clock_mode
S32 BBQKees Gateway S32 2 18 23 5 0
E32 BBQKees Gateway E32 2 4 5 17 33 LAN8720 16 1 input to GPIO0
E32V2 BBQKees Gateway E32 V2 2 14 4 5 34 LAN8720 15 0 output from GPIO0
S32S3 BBQKees Gateway S3 2 18 5 17 0
MH-ET MH-ET Live D1 Mini 2 18 23 5 0
NODEMCU NodeMCU 32S 2 18 23 5 0
LOLIN Lolin D32 2 18 17 16 0
OLIMEX Olimex ESP32-EVB 0 0 36 4 34 LAN8720 -1 0 input to GPIO0
OLIMEXPOE Olimex ESP32-POE 0 0 36 4 34 LAN8720 12 0 output from GPIO17, inverted
C3MINI Lolin C3 Mini 7 1 4 5 9
S2MINI Lolin S2 Mini 15 7 11 12 0
S3MINI Liligo S3 17 18 8 5 0

Choosing Custom will show the following additional settings to manually configure the GPIOs to match your own board. You can also select Custom at any time to display the current board profile settings, without saving.

Custom board Settings:

  • Rx GPIO - Which GPIO pin the Rx is assigned to. By default this is GPIO 23 but it can be almost any free pin. Connect this GPIO pin to the RX port on the EMS interface board.
  • Tx GPIO - Which GPIO pin the Tx is assigned to. By default this is GPIO 5 but it can be almost any free pin. Connect this GPIO pin to the TX port on the EMS interface board.
  • Button GPIO. Set a pin with pull-up. The button is used for different functions, such as holding for 10 seconds to reset to factory settings.
  • Temperature GPIO. This is the pin where any external temperature sensors are attached. The Dallas chips DS1822, DS18S20, DS18B20, DS1825 are supported including their parasite varieties and can also be daisy-chained onto a single line, up to 100 sensors.
  • LED GPIO. This is the pin for the LED, defaulted to the onboard LED on the ESP dev board.
  • Eth PHY Type for choosing the Ethernet chip used.

On ESP32 development boards there are often also pins marked RX and TX. However, these are usually connected to the USB chip and cannot be used for the EMS interface circuit.

  • EMS Tx Mode. Tx Mode is the mode in which EMS-ESP sends telegrams on the EMS bus. Choose the mode that works best for your system and watch for Tx errors in the Web Dashboard and show ems in the Console. Changing the value has immediate effect.
    • EMS is the default for EMS1.0 systems but also compatible with most other bus protocols.
    • EMS+ is designed to work better for EMS2.0/EMS+ systems.
    • HT3 for Heatronics3 used primarily by Junkers.
    • Hardware uses the internal ESP's hardware to send out the telegram. Telegrams are sent immediately. It is the fastest and most efficient method but works only on some systems.
  • EMS Bus ID. The EMS-ESP can simulate multiple devices. Stick to the Service Key (0x0B) unless using more than one EMS gateways/interface board.
  • Enable Read only mode. This disables any outgoing Tx write commands to the EMS bus, essentially putting EMS-ESP into listening mode. However Tx is needed to detect EMS devices (as it sends out a Version command). If you want to explicitly put EMS-ESP into a read-only/sniffer mode use set tx_mode 0 from the console.
  • Hide LED. Turns off the LED when in normal operating mode. The LED is still shown when booting or when there are connection issues.
  • Underclock CPU speed. Under-clocks the ESP to 160Mhz, saving on power, heat and prolonging the lifespan of the chip at the cost of performance and response time. A reboot of EMS-ESP is required.

Special Functions~

  • Developer Mode will enable advanced features in the WebUI, like the Read command from the System Log.
  • Start boiler with forced heating off.
  • Disable remote on missing room temperature. This is a safety feature to prevent the boiler from starting when the simulated room temperature sensor is missing or not working.
  • Enable Shower Timer. Enable to time how long the hot water runs for and it will send out an MQTT message with the duration. The timer starts after a minimal of 2 minutes running time.
  • Enable Shower Alert. This is somewhat experimental and may not work on all boilers. After 7 minutes (configurable) running the hot water it will send out a warning by sending cold water for 10 seconds (also configurable). The boiler goes into test mode to perform this operation so use with caution!

Network Setup~

The Network page allows you to connect EMS-ESP to your home network. You can choose between WiFi and Ethernet if the hardware board support this. Note WiFi must be 2.4GHz/WPA2. It will not connect to a 5GHz WifFi access point.

CORS (Cross-Origin Resource Sharing)~

CORS, when enabled adds new HTTP headers to each Web request to allow the Web API to make fetch and XMLHttpRequest requests across different domains. It disables the pre-flight check which follows the same-origin policy by default. See https://developer.mozilla.org/en-US/docs/Web/HTTP/CORS for more details. There is also a "CORS unblock" browser addon that works the same way.

Enable this function when running in VPNs or you have other servers (like Grafana) running on other domains that are making calls to EMS-ESP's API.

MQTT Setup~

  • Broker Address. Use the IP address, not a FQDN.
  • Port. The default is 1883 and 8883 for SSL.
  • Base. All topics are prefixed with the Base so this is important. Make sure this is unique when using more than one EMS-ESP with the same broker.
  • Client ID. This is used internally to identify EMS-ESP with the broker and is optional. Note MQTT topics will be postfixed with the hostname (default ems-esp) and not the client ID. Use when having multiple devices.
  • Username and Password are optional but recommended for security. By default Mosquitto MQTT broker requires a username/password so pay attention if using the Home Assistant Add-On here.
  • Set Clean Session. Creates a non-persistent session when enabled. Default and recommended setting is disabled to keep it disabled when using home automation systems.
  • QoS. Quality of Service, 0, 1 or 2. 0 is the default and suitable for more scenarios. A value of 1 will give a guarantee that the message has been sent, but will create slightly more network traffic and overhead.
  • Always set Retain Flag. Enable if you want to persist all the messages on the MQTT broker. Default is disabled.
  • Formatting. The Nested option will group all the device data into a single MQTT topic by using embedded JSON objects such as dhw in boiler_data, hc1 in thermostat_data etc. As individual topics will split this into separate MQTT topics without grouping, so MQTT topics will become boiler_data and boiler_data_dhw, thermostat_data and thermostat_data_hc1 and so on. The same applies to the Analog and Temperature sensors. The default is nested.
  • Publish command output to a 'response' topic'. This takes the output from an API command and publishes the result in a topic called response.
  • Publish single value topics on change. This option will immediately publish the topic and payload for each operation and only available when MQTT Discovery is disabled.
  • Enable MQTT Discovery enables the integration using MQTT Discovery, fully supported with Home Assistant and partially with Domoticz.
    • Discovery type. Choose between "Home Assistant" and two protocols for "Domoticz". Domoticz (latest) will use Numbers, Switches, Select and other modern types, while Domoticz will just use Sensors for everything and also remove any templating conditions.
    • Entity ID format: There are 3 options. The first single instance, long names uses the older < v3.5 format. The default and recommended setting for all new installs is the 2nd option called Single instance, short name which uses the EMS-ESP device entity name, which is fixed and can be seen in the Settings->Customization page. The last option must be used when running more than one version of the EMS-ESP firmware as it makes each unique by prefixing all MQTT topics with the base name.
  • Publish Intervals. This section is per device and sets how frequent an MQTT message is sent. When set to 0 EMS-ESP will send data automatically when there is a noticeable change, which could be within a few seconds.

NTP Setup~

  • The default NTP Server is time.google.com. This can be changed to a local NTP server or a specific one, such as pool.ntp.org.
  • The default Time Zone is "Europe/Amsterdam". This can be changed to any of the IANA Time Zone Database time zones.

Managing Users and Roles~

The Security page allows you to change the default password for the captive portal and Telnet CLI. It also allows you to enable HTTPS for the captive portal and MQTT broker.

The Users page allows you to create additional users for the captive portal and Telnet CLI. The default user is admin with password admin.

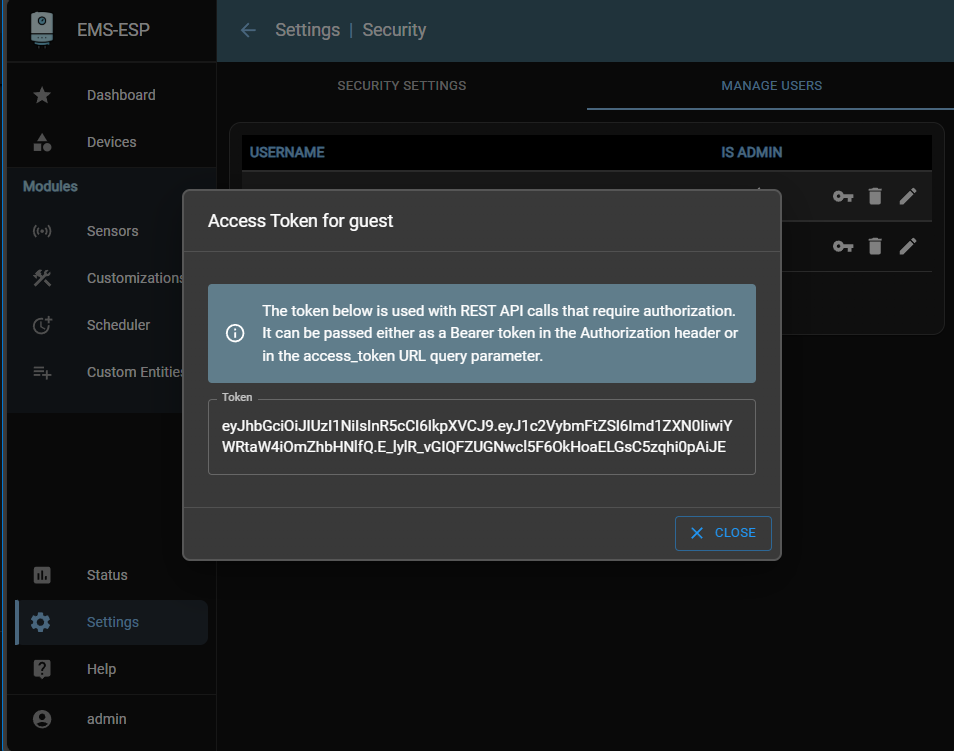

Each user has an unique Access Token (viewable by clicking on the key icon) which is used for RESTful write commands via HTTP POST. This is for security reasons to prevent anyone changing device settings.

Web

Adding Analog and Temperature Sensors~

External sensors, like temperature and analog sensors can be attached to a range of GPIO pins on the ESP32 chip. If using a BBQKees Gateway board it already has an external plug for Dallas temperature sensors which will be visible in the WebUI without any additional configuration.

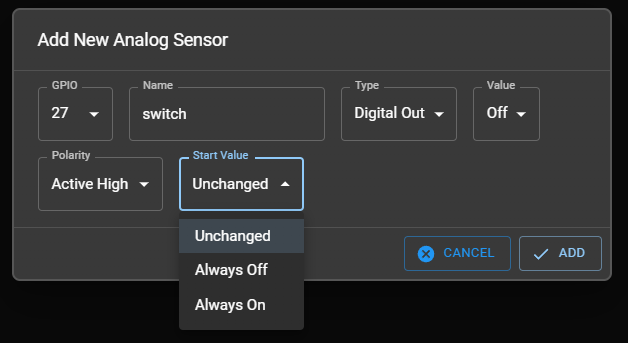

To add analog sensors click on Add and choose between a normal Digital in/out, a Counter (counting on/off pulses), ADC for measuring voltages, Timer, Rate and PWM 0-2. Note, the counter value is persisted and not reset on reboot.

Web

Warning

Be careful when picking a GPIO so it doesn't clash with the other used GPIOs (you can select CUSTOM board profile to view your current configuration).

EMS-ESP is connected to the low voltage bus of your heating and any over-voltage can damage the EMS-ESP board and possible your heating devices. Never power external equipment from the EMS-ESP board directly.

ESP32 development boards vary in their available pin configuration. Typically you can't use 1, 6-11, 12, 14, 15, 20, 24, 28-31 and 40+. See these links here and here.

The following GPIOs are recommended:

  • digital output: 13, 19, 21, 22, 27, 33, 37, 38
  • digital input/counter/timer/rate: 13, 19, 21, 22, 25, 26, 27, 33, 35, 37, 38, 39 (note no pullup on 35 & 39)
  • ADC input: 13, 19, 21, 22, 25, 26, 27, 33, 35, 37, 38, 39
  • DAC output: 25, 26
  • PWM output: 13, 19, 21, 22, 25, 26, 27, 33, 37, 38

Limits:

  • ADC: 1.5V
  • DAC 8bit
  • PWM: `max frequency 5000Hz, resolution 13bits``
  • Counter/timer/rate trigger: high->low edge with 15 ms debounce. Only for low pulse rates.

Controlling Relay's~

A common use case is to control a relay to switch on/off a device. This can be done by adding a digital output sensor and then creating a command to control it. The command can be added to the dashboard and scheduled to turn on/off at specific times.

Create an Analog Sensor with type 'Digital Out'.

The professional way is to use a separate relay board with opto-isolation and a flyback diode. The relay board is then powered by a separate power supply and the relay is connected to the digital output of the EMS-ESP as described above. The relay board is then connected to the device you want to control. This way the device is completely isolated from the EMS-ESP and the relay board can handle the higher voltage and current.

Customizing Entities~

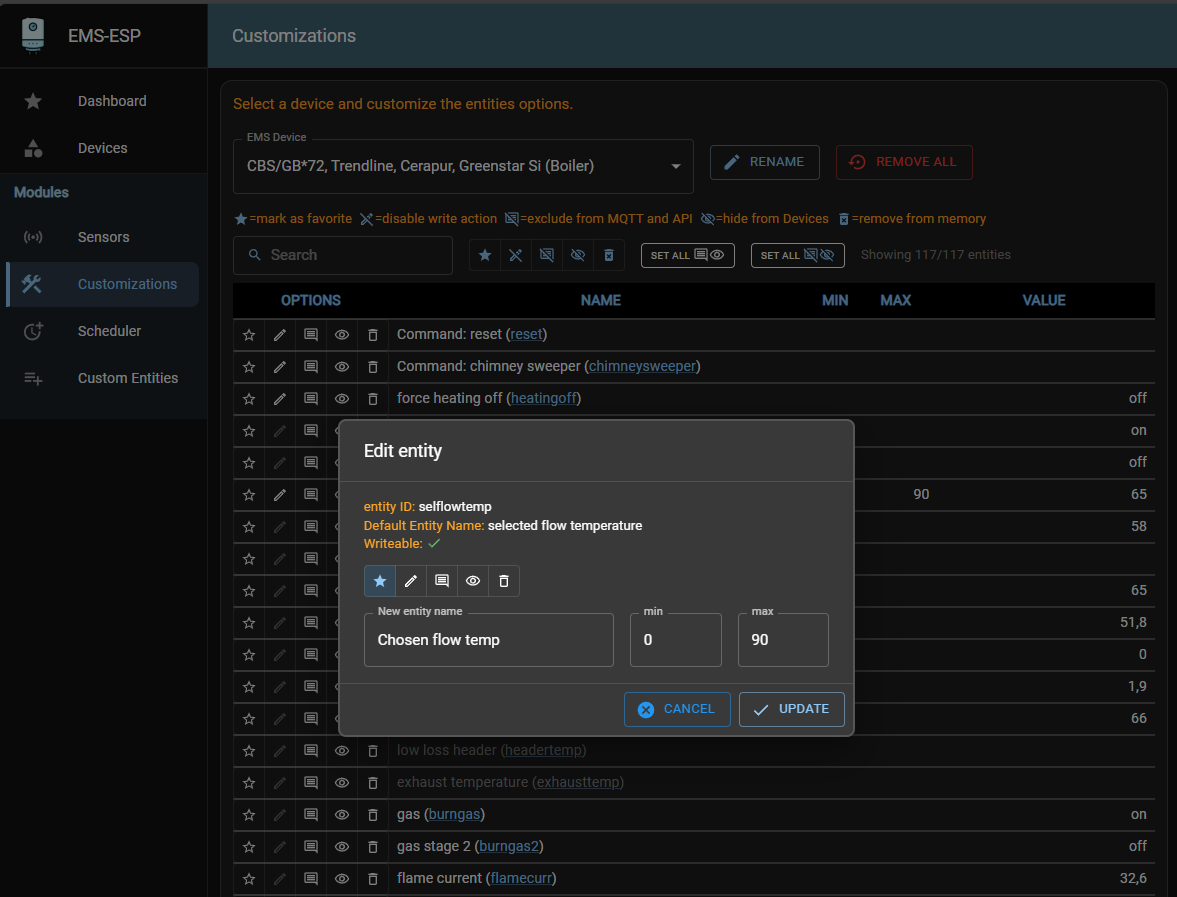

The Customization page shows all registered entities and allows to exclude commands and values from publishing via MQTT/API or remove them from WebUI pages. The Devices and Dashboard only show entities with value while the Customization module will show all of them. If an entity has no value then it is supported by EMS-ESP, but not by your boiler/thermostat/etc and will not be published or visible to any integrations like Home Assistant.

Web

Scheduling Actions~

Use the scheduler to call commands at specific intervals. A few examples:

  • set the hot water temperature to a higher value in the morning and evening
  • do a periodic system restart each week (although you shouldn't need to!) using system/restart in the Command field
  • send a message to the log and mqtt using the Command system/message
  • use in combination with a custom 'ram' entity to fetch data via another API like {"url":"http://server.tld/path/file", "key":"nameofkey"} and using this as a condition in the scheduler
  • send data to an external API, via a RESTful HTTP POST command, for example {"url":"http://192.168.0.100/cm?cmnd=power"} == {"power":"off"}
  • use to call a Home Assistant script or service when a condition is triggered, e.g. { "url":"http://<ha ip>/api/services/script/my_script", "header":{"authorization":"Bearer <ha key>", "Content-Type":"application/json"} }

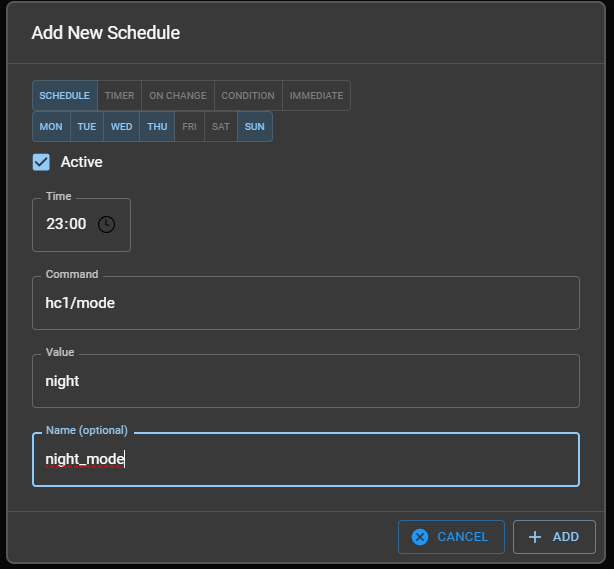

When creating a scheduler entry, the name is optional but it's useful to assign a name and then you can control it via a command (enable/disable) and see the status in the MQTT topic scheduler_data.

Web

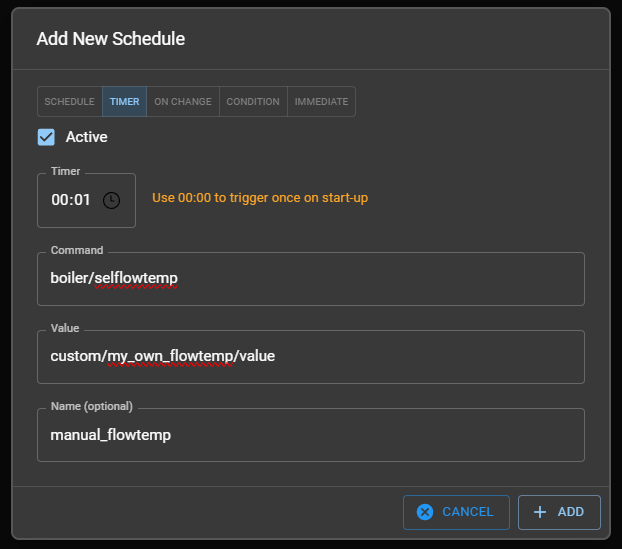

The scheduler can also be used to periodically set values based on another entity value, or even a user-defined custom entity (variable). For example to set the flow temperature of the boiler every minute based on a user managed entity which is controlled externally (e.g. in Home Assistant) it would look like:

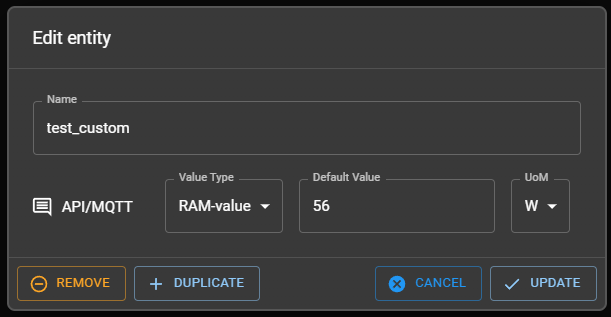

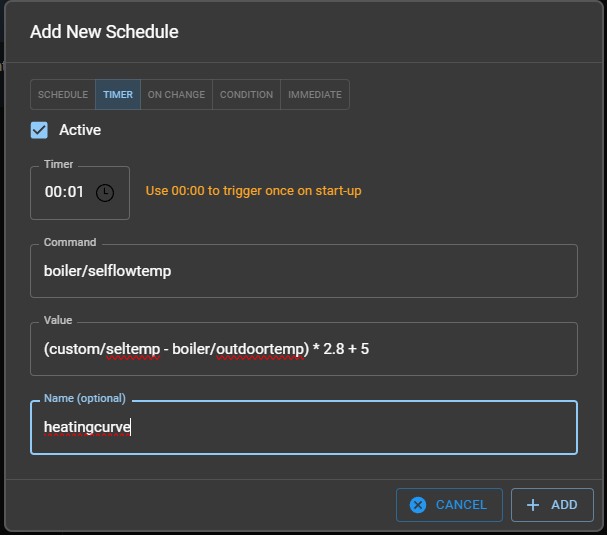

Web Web

Conditions~

Introduced in version 3.7, the Scheduler has been extended to support conditional statements and formulas that can be used in the Command and/or Value fields for Timer, On Change and Condition types.

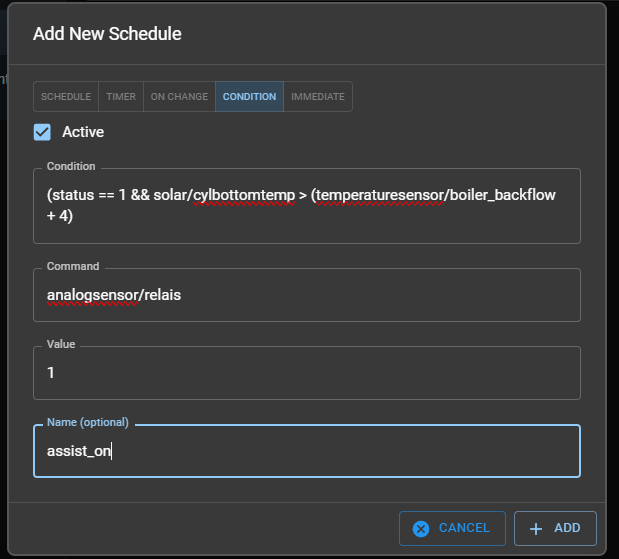

Conditions have a strict syntax (see below) and are evaluated every 10 seconds. The condition is only executed when the condition changes from false to true. This is powerful new feature and allows, for example, to set a schedule based on a condition or set a value based on a condition.

Pay attention to the following rules:

  • a condition has to be a logic value 0 or 1, the condition is true only for 1, an arithmetic result 1 is also interpreted as true schedule command executed for 3 > 2, 3 - 2 schedule command not executed for 3 < 2, 3 + 2
  • spaces are not needed, but makes the formula more readable
  • EMS-ESP values are accessed <device>/<entity> or <device>/<entity>/value. The <entity> may contain additional prefixes like <hc2>.
  • The user's Boolean Format (0/1, off/on, OFF/ON, or false/true) and Enum Format (value/index) Settings are used when evaluating bool and enums. Check the right value before setting a schedule by querying the API directly. For example go to http://ems-esp.local/api/thermostat to see if building is "medium", then create the rule with thermostat/building == medium.
  • strings containing special characters have to be quoted. e.g. boiler/pumpmode == "delta-P2", to avoid a calculation error on delta minus P2.
  • all strings are converted to lowercase
  • commands followed by a divider (/) have to be set in parenthesis e.g. (boiler/seltemp)/2
  • condition command is only executed on a change of the condition from false to true. If the condition stays true, the command is not repeated
  • a command Value can also be a formula
  • allowed operations:

    • arithmetic: + - * / %
    • functions: round abs int exp log sqrt pow
    • logic: == != <= >= < > && ||
    • prefix: ! (not) and - (negation)
    • conditional operations: <cond1> ? <expr1> : <expr2> only surrounding a formula, not within a formula. Examples:
      • (allowed) <cond> ? 5 + <expr1> : 5 + <expr2>
      • (not allowed) 5 + (<cond> ? <expr1> : <expr2>) and cascaded conditions <cond1> ? <cond2> ? <expr1> : <expr2> : <cond3> ? <expr3> : <expr4>

An On Change trigger is a list of entities following the format <device>/<entity>. Note, a <device> of "system" is not supported. e.g. boiler/outdoortemp custom/setpoint. As entities never change at the same time using logical operations here like && aren't useful.

Web

Web

Web Commands~

Sending or getting data via web request can be used in a json command:

  • GET a value from webserver: {"url":"http://server.tld/path/file"}
  • GET a json value from webserver and select the key: {"url":"http://server.tld/path/file", "key":"nameofkey"}
  • set a value with POST: Command: {"url":"http://server.tld/path/file", "header":{"content-type":"text/plain", "token":"mytoken"} Value: the post message, if it is a json the content-type header is set in header, no need to set it.

Examples:

  • getting power state of a tasmota plug example: {"url":"http://192.168.0.100/cm?cmnd=power", "key":"power"} == off is identical to {"url":"http://192.168.0.100/cm?cmnd=power"} == {"power":"off"}
  • setting a tasmoto plug: {"url":"http://192.168.0.100/cm?cmnd=power%20on"}

Notification~

With web commands a service like pushover can be used to send a push-message on events. To send different message create a custom entity in RAM named message, or what ever you like. Create a schedule On Change triggering the change of this message and sending the pushover message.

grafik

Now you can create other schedules with the command custom/message and use individual text as data.

Adding Custom Entities~

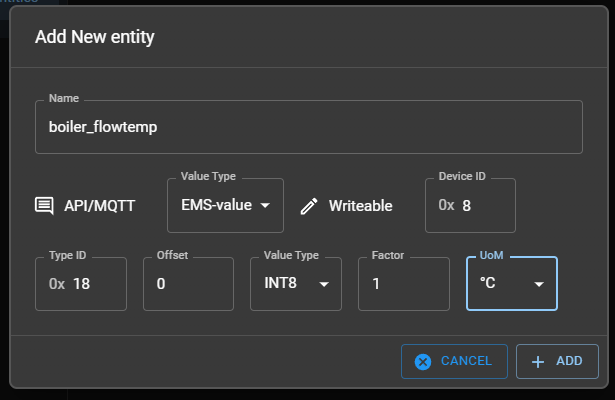

Custom Entities is an advanced and powerful way to extend EMS-ESP by adding your own EMS entities that extracts data from a specific EMS telegram. This is useful when EMS-ESP doesn't yet support a specific entity, or when you want to extract data from a telegram that is not yet supported. Another common use case is for debugging or watching specific behavior when changing parameters on an EMS device.

For example, a modern Heat Pump may have new features that are not included in EMS-ESP. Here you would use the watch command to view the incoming EMS traffic in combination with manual adjusting specific parameters and when you have located the specific telegram and the offset, create a Custom Entity to fine-tune the type and verify the the value. Then request it to be included in the next EMS-ESP release update.

Web


Last update: February 10, 2025
